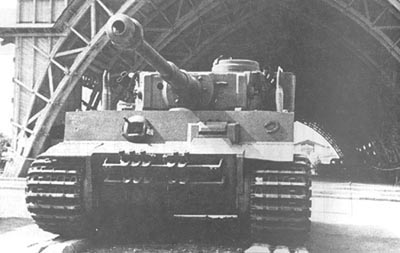

Tiger I Pz.Kpfw.VI Sd.Kfz
V12 cyl, 650hp engine 60 deg V (maybach HL210P45 21353cc OHC at rear
driving front sprockets through Via 8 speed gear box, steering control
by differential, Hydraulic bralkes.8 triple interleaved road wheel.
Torsion bar suspension. Track width 520/725mm.24V Elec system. Overall
dimensions 6200mmx3550mmx2880mm (width reducible to 3150mm).Armour
thickness 60mm-80mm.534Liter fuel at 4 fuel tank, Range 90km on
road,60km off road.88mm gun with 2 MG Weight 56900kg.
One of the heaviest tank at WWII total about 1350 been made.
|
