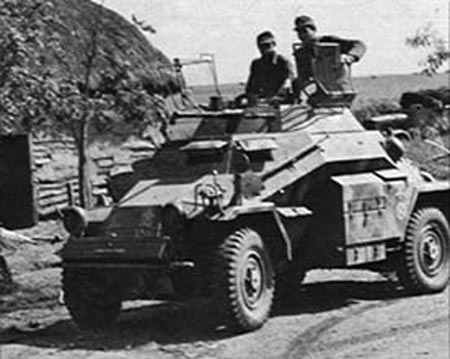

Sd.Kfz.221/222/223
3823cc V8 side Valve 90hp water cooled motor, mounted at rear
with a 5 speed gear box, all wheel drive, Rear Diff integral with
gear box, Both axle with lockable diff, Hydraulic brake. Early model
got mechanical brakes and 3.5 Horch V8 engine, Indenpendent
suspension with dual coil spring each wheel.4 wheel steering 210R18
tire.12V Elec system,100 litre fuel tank. Max speed 75km/h, Range on
road 300km, off road 200km.Vehicle size 4560mmx1950mmx2000mm,weight
4400kg.Weapon 7.92mm rifle and MG34. 223 radio version with out
turret, 221 and 222 similar except radio equipment. |
