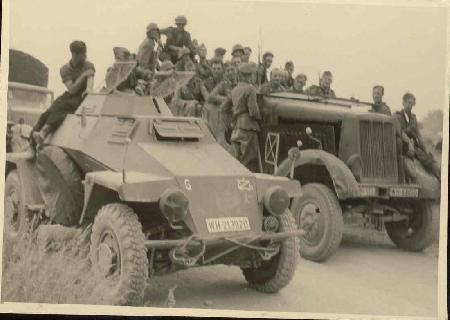

1:6 scale SdKfz 222 light armoured car.
¡@
The SdKfz 222 was one of the German Light armored car at WWII, It
developed at early 30s.
This vehicle with a H ladder chassis, 4 wheel independent
suspension, 4 wheel steering and 4
wheel drive, with a 20mm-28mm Gun and a 7.92mm MG carried 3 man
crew. The Basic model was the SdKfz 221 which had a two man crew
and armed with a single 7.92mm MG34 gun. SdKfz 223 was a Radio
vehicle. Power by Horch V8 Max speed 75km/h Range 280 km. A large
no been exported to China between 1934-1939.
¡@3823cc V8 side Valve 90hp water cooled motor, mounted at rear with a 5
speed gear box, all wheel drive, Rear Diff integral with gear box,
Both axle with lockable diff, Hydraulic brake. Early model got
mechanical brakes and 3.5 Horch V8 engine, Independent suspension
with dual coil spring each wheel.4 wheel steering 210R18 tire.12V
Elec. system,100 litre fuel tank. Max speed 75km/h, Range on road
300km, off road 200km.Vehicle size 4560mmx1950mmx2000mm,weight
4400kg.Weapon 7.92mm rifle and MG34. 223 radio version with out
turret, 221 and 222 similar except radio equipment. |
